hull cleaning equipment:

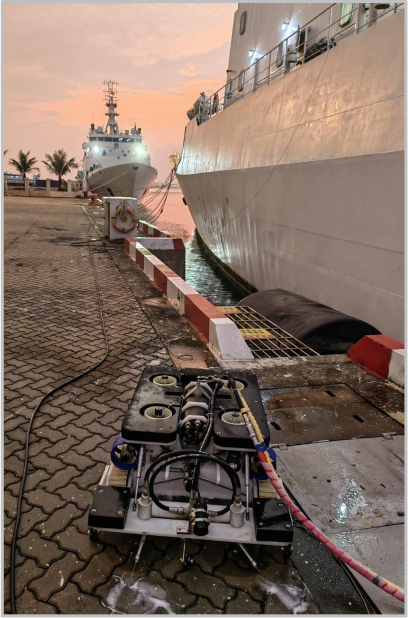

Cavitation Jetting HullCleaningRobot

Robot part
Robot weight	80kg	Working depth	≤300m
All system weight	650kg	System power	35kW
Cleaning width	0.8m	Max Speed	40m/min
Work Pressure	17Mpa
Cleaning efficiency	Hard Marine organisms (3cm thick):250-300㎡/h Seagrass and hard Marine organisms (1.5cm thick) : 600-800㎡/h Light seagrass:1500㎡/h
Material structure	Frame structure, usingthe high-strength aviation aluminum material.
Propellers	3vertical thrusters, and4horizontal thrusters. Realize rolling, lifting, adsorption, forward, backward, left and right steering.
Walking track	Two rear drive track, realize the cleaning process forward, backward, 360°turn around.
Cameras	The head is equippedone200W HD digital len at the front end andone200W HD digital lens at the back end.
Lights	The cloud head is equipped with 2 sets of 20W highlight LED lights, and the robot is equipped with two sets of 50W highlight LED lights at the front end and two sets of 50W highlight LED lights at the back end. The light brightness can be adjusted.
Sensor	Equipped with electronic compass, gyroscope, accelerometer, depth sensor, temperature sensor, humidity sensor, water leakage detection.

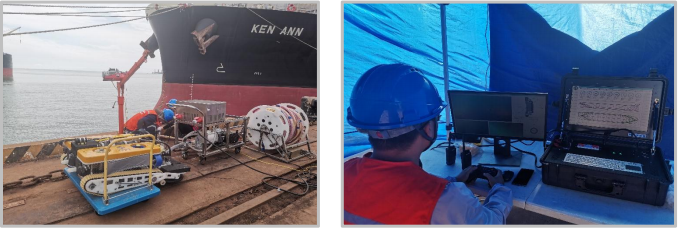

ControlSystem
Host	The computer uses embedded host, I7 processor, hard disk capacity of 1T.

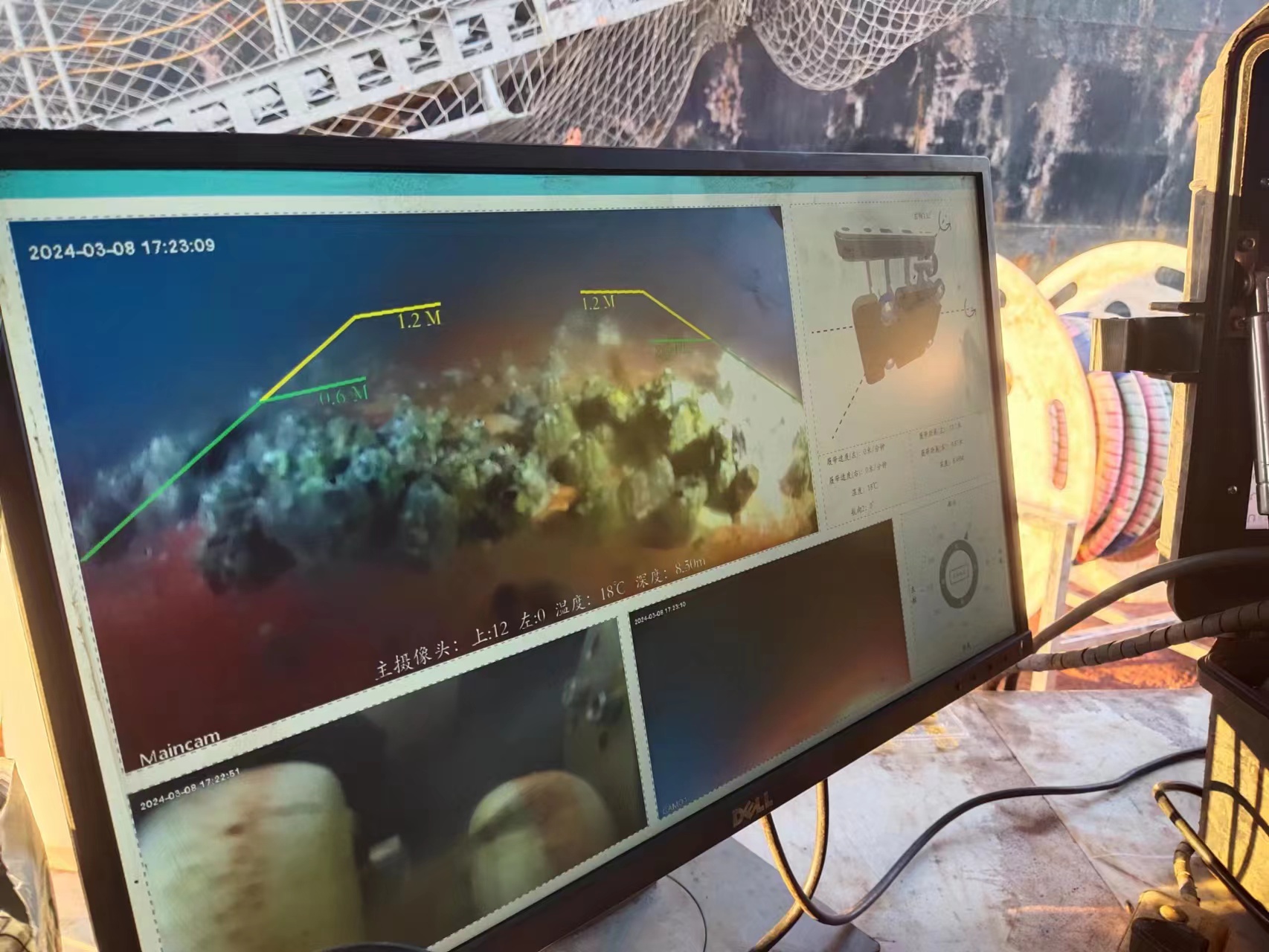

Video overlap	There is a video superposition function, which can stack the date, time, depth, temperature, heading, leakage indicator, etc.
Console	Adopt the splash-control console design.
Expansibility	With an expanded port, it can expand the underwater imaging sonar, underwater ultra-short baseline, etc.

Advantages

Less safety risks than totally manual operation.
Less affected by wind, waves, surges, currents, and water temperature.
Achieve uninterrupted operation for 24 hours whether in port or at anchor.
Stably adhere in water flow exceeding 3 knots relying on propeller hull adhesion.
Use cavitation jetting cleaning ,achieving non-destructive operations without any damage to the paint.
Suitable for fields with strict magnetic environment requirements, such as fishery administration,warships, and submarines.
Cleaning More surfaces, such as bottom plate, side plate, bulbous bow"U"plate......
High efficiency, can save labors and cost
